INSTRUCTIONS ON SETTING UP GAP DISTANCE:

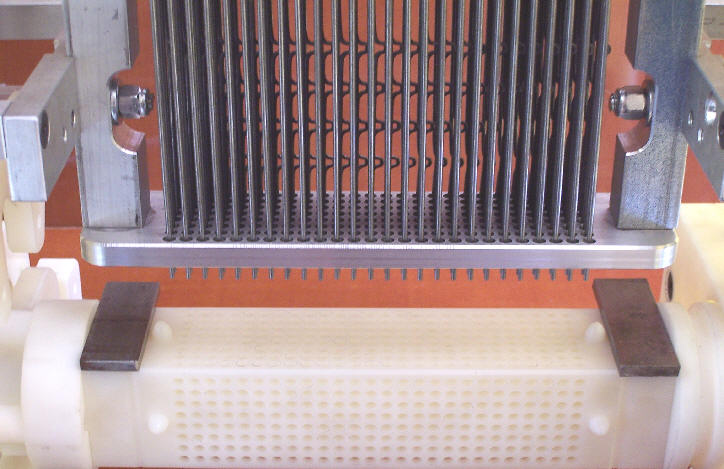

(1) With lift cylinders in the down position, use .250 thick Setup Block
placed on top of each end of Index Drum as shown.
(2) Loosen two Vertical Mount Post Bolts.
(3) Bring Lift Cylinder in to the up position and hold air air switch.
(4) Re tighten two Vertical Mount Post Bolts securely. (SEE View #2)
|
