ProSeamer II

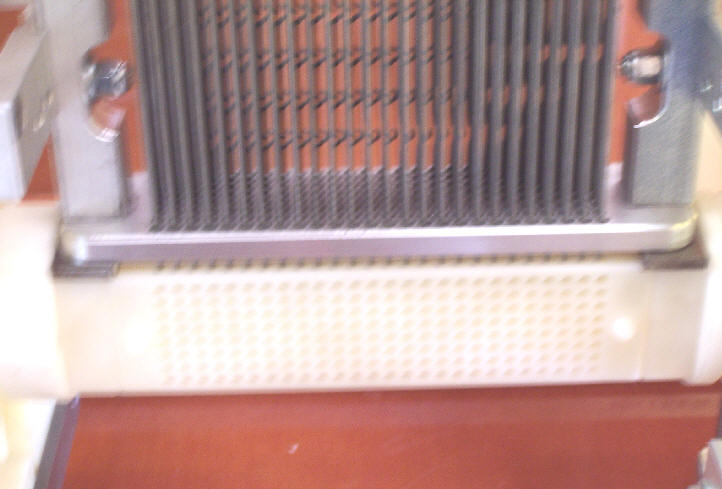

Showing Lift Cylinders in the up position ready for tightenthe two Vertical Mount Post Bolts.
VERTICAL PIN HOUSING ASSEMBLY GAP SETUP VIEW #2
PAGE 35
.250 GAP ESTABLISHED BY PRESSURIZING LIFT CYLINDERS. TWO BOLT ARE SECURED BEFORE RELEASING AIR PRESSURE.
ID-1N
